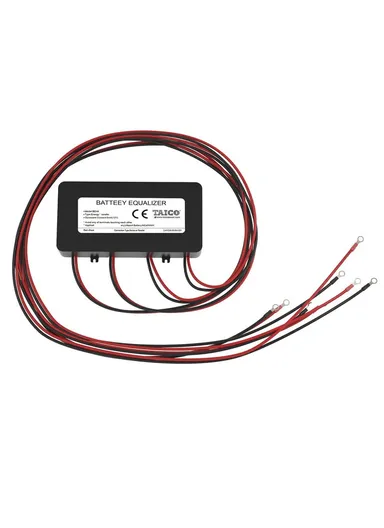

48V Battery Balance Charger Equalizer With LCD Screen BE48 (L6.2 x W12.4 x H2.7) cm Features: BE48 Battery Equalizer is used for the batteries which are connected in series to keep the voltage of batteries equal when the batteries are charging or discharging When the batteries work in a series connection, the battery's voltage maybe will be not the same due to the difference in each cell's chemical composition and temperature And each battery’s self-discharge rate is also different So even if the batteries do not work, the voltage of the series batteries will also be different These differences will cause the battery to lose balance, this means maybe one battery is overloaded and the other is insufficiently charged The voltage difference will be increased with the battery's repeated charge-discharge process This will result in premature failure of the batteries. BE48 battery equalizer is an energy transfer type equalizer, it can compensate for batteries with two sides The equalizer starts to work when there is 10mV between two batteries. The current will flow from higher to low voltage, eventually reaching equilibrium. It can connect to the battery system for 24 hours, to keep the system energy balance automatically, with no need for manual maintenance Specifications: Model: BE48 Nominal voltage: 4* (2.4V/3.6V/6V/9V/12V) Optimizing current 0-10A Quiescent current: 5mA(12V) 1.2mA(2.4V Protection Reverse polarity protection Low Voltage Disconnect 1.8W Size: (L6.2 x W12.4 x H2.7) cm Package Included: 1 x Battery Equalizer
