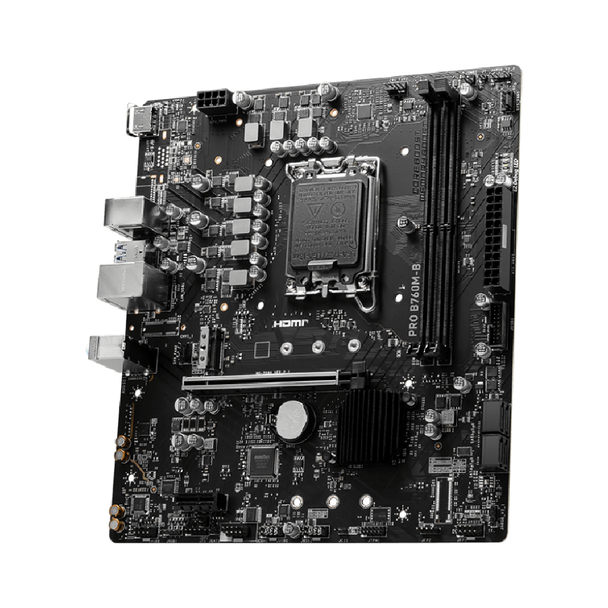

MSI PRO B760M-B DDR5 Motherboard | 911-7D90-054
The
MSI PRO B760M-B DDR5
motherboard is designed for professionals and power users who need reliable performance, fast connectivity, and stable computing in a compact Micro-ATX form factor. It supports the latest
Intel 14th, 13th, and 12th Gen Core processors
with an
LGA 1700 socket
and
DDR5 memory
technology for cutting-edge speed and efficiency.
Key Features:
Chipset:
Intel B760 Chipset
Socket:
LGA 1700 – Supports Intel 14th/13th/12th Gen Core, Pentium Gold & Celeron processors
Memory:
Dual Channel DDR5 Memory (2 × DIMM)
Supports up to
128 GB DDR5-6400+(OC)
Expansion Slots:
1 × PCIe 4.0 ×16 slot (with Steel Armor)
1 × PCIe 4.0 ×1 slot
Storage:
1 × M.2 Gen4 ×4 slot (NVMe SSD support)
4 × SATA 6 Gb/s ports
Networking:
Realtek RTL8125B 2.5 Gbps LAN Controller
USB Ports:
Rear: USB 3.2 Gen 1 × 4, USB 2.0 × 2
Internal Headers: USB 3.2 Gen 1 × 1, USB 2.0 × 2
Display Outputs (via CPU Graphics):
HDMI 2.1 (4K @ 60 Hz)
DisplayPort 1.4 (4K @ 60 Hz)
Audio:
Realtek ALC897 7.1-Channel High Definition Audio
Form Factor:
Micro-ATX
Other Features:
Core Boost & Memory Boost for power stability
PCIe Steel Armor for GPU slot protection
Frozr AI Cooling for optimized thermal control
EZ Debug LED for quick troubleshooting
