Single Product

Brand
TPLINK
Category
Wireless Router
Model number

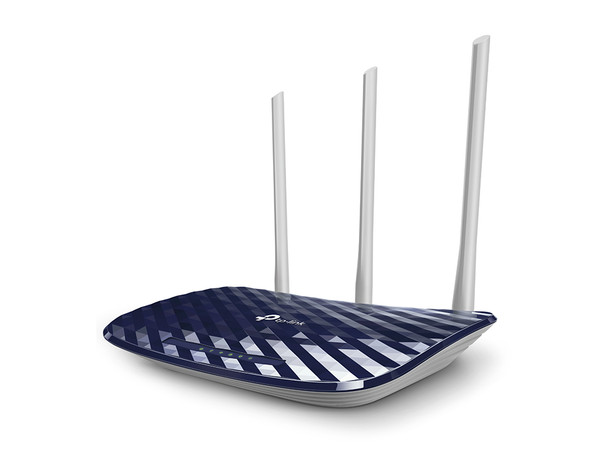

TPLINK  AC750 Wireless Dual Band Router Archer C20
Supports 802.11ac standard - the next generation of Wi-Fi
Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
3 external antennas provide stable omnidirectional signal and superior wireless coverage
Specification
HARDWARE FEATURES

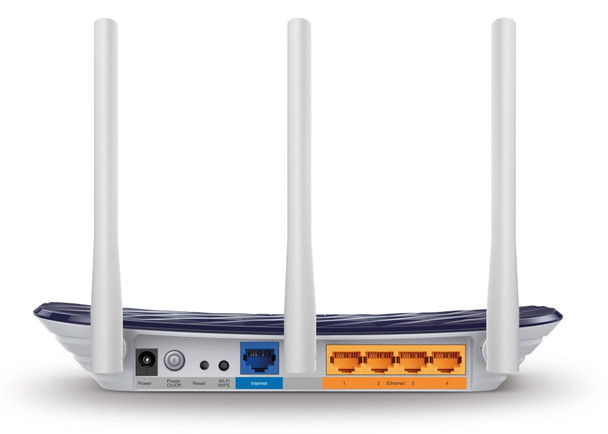

Interface
4 10/100Mbps LAN ports
1 10/100Mbps WAN port
Button
WPS/Wi-Fi Button
Reset Button
Power On/Off Button
External Power Supply
9V/0.6A(EU), 9V/0.85A(US)
Dimensions ( W x D x H )
9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
Antenna
2 × 2.4GHz Antennas
1 × 5GHz Antenna
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency
2.4GHz and 5GHz
Signal Rate
5GHz: Up to 433Mbps
2.4GHz: Up to 300Mbps
Reception Sensitivity
5GHz:
11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;
11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:
-62dBm
2.4GHz:
11g 54M: -76dBm11n; HT20 MCS7: -73dBm;
11n HT40 MCS7: -71dBm
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security
64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Transmission Power
CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
SOFTWARE FEATURES
Quality of Service
WMM, Bandwidth Control
Management
Access Control
Local Management
Remote Management
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
DynDns, Comexe, NO-IP
VPN Pass-Through
PPTP, L2TP, IPSec
Access Control
Parental Control, Local Management
Control, Host List,
Access Schedule, Rule Management
Firewall Security
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Protocols
Supports IPv4 and IPv6
Guest Network
2.4GHz guest network × 1
5GHz guest network × 1
OTHERS
Certification
CE, RoHS
Package Contents
AC750 Wireless Dual Band Router Archer C20
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Box Dimensions (W X D X H)
14 x 8.8 x 2.7 in. (357x223x68mm)
System Requirements
Microsoft Windows XP/Vista/7/8/8.1/10, MAC OS, UNIX or Linux
Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browsers
Cable or DSL or Fiber Modem/Terminal
Subscription with an Internet Service Provider (for Internet access)
Environment
Operating Temperature: 0????~40 ???? (32 ????~104????)
Storage Temperature: -40????~70 ???? (-40 ????~158????)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
